Exclamation 2016 Ram 3500/5500 Chassis

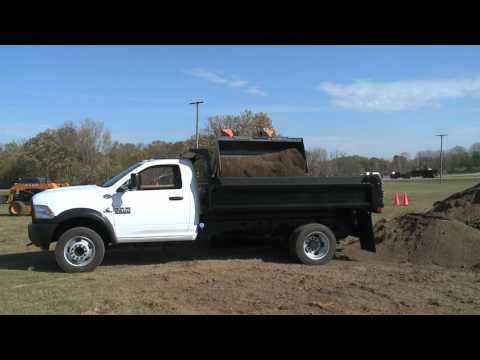

2016 Ram 5500 Chassis Cab Towing and Hauling Footage

Published on Oct 22, 2015

Towing and hauling footage of the 2016 Ram 5500 Chassis Cab.

Rick

Nitro Year: 2007 (1 of 91,815 sold in 07)
Nitro Model: R/T 4X4 Stone White
CAT-BACK Exhaust, CAI, Projector Head Lamps
Fully-Equipped w/all factory options
rickaren is online now
Sponsored Links
Advertisement

post #2 of 4 (permalink) Old 11-09-2015, 04:29 PM Thread Starter
Super Moderator

rickaren's Avatar

Join Date: Nov 2006
Location: Indiana
Posts: 22,860
Garage
Press Kit: 2016 Ram Chassis Cab

Press Kit: 2016 Ram Chassis Cab
New Features Provide 2016 Ram Chassis Cab Lineup Best-in-class Range and Capability

A 74-gallon dual fuel tank option expands to all frame lengths, delivering the highest fuel capacity and greatest range in its class
ParkSense rear backup system now combined with class-exclusive front park assist
All-new center consoles and lower cost radio option with Bluetooth connectivity
Ram Chassis Cab outworks the competition with best-in-class towing, Gross Combined Weight Ratings (GCWR) and best-in-class total cost of ownership
Ram 4500 max trailer weight of 24,650 pounds and GCWR of up to 32,500 pounds
Ram 5500 max trailer weight of 29,600 pounds and GCWR of up to 37,500 pounds
Ram 4500 and 5500 Chassis Cabs available with gasoline or diesel powertrains
6.4-liter V-8 powers Ram’s hardest-working trucks with 370 horsepower at 4,600 rpm (410 horsepower at 5,600 rpm under 10,000-lb. GVWR) and 429 lb.-ft. of torque at 4,000 rpm featuring variable-valve timing (VVT) and Fuel Saver Technology cylinder deactivation
6.7-liter Cummins available with high-output option producing a best-in-class 325 horsepower at 2,400 rpm and 750 lb.-ft. of torque at 1,500 rpm
Aisin AS69RC six-speed automatic and exclusive manual six-speed transmissions handle powerful diesel output
Exclusive gasoline-engine, left- or right-side power takeoff (PTO) capability with Aisin AS66RC transmission
Best-in-class powertrain warranty – five years/100,000 miles on diesel engines and unsurpassed on gas engines
New colors: Red Pearl, Luxury Brown and Pearl White


Auburn Hills, Mich., Sep 1, 2015 -









Ram 3500, 4500 and 5500 Chassis Cab trucks are the brand’s halo trucks in capability. Engineered and designed for extreme daily work, the Ram Chassis Cabs are built for an unrelenting duty-cycle with direct customer input.

Ram’s most capable truck line focuses on delivering best-in-class capability and best-in-class total cost of ownership — a leading purchase reason among business owners.


The data speaks for itself with best-in-class Gross Combined Weight Ratings (GCWR) of 37,500 pounds, best-in-class towing capability of 29,600 pounds and best-in-class frame strength provided by 50,000 psi steel.

All configurations of Chassis Cab can be ordered with a staggering dual fuel tank capacity of 74-gallons, which delivers the highest fuel storage and drive range in the segments. More fuel means more run time and improved total cost of ownership — in some models more than 1,000 miles of operation.

2016 Ram Chassis Cab trucks can be ordered with an optional ParkSense Package, which now includes a new front park assist system. This exclusive feature further enhances safe operation and complements the current backup camera offering. The feature improves total cost of ownership and reduces potential damage by audibly notifying the driver of oncoming contact.

Handsfree driving is a must and Ram Chassis Cab trucks offer the latest infotainment technology. For 2016, a new lower cost radio option is available with Bluetooth connectivity.

The Ram Commercial Truck brand will continue to expand its presence in the vocation truck segment by enhancing the capabilities of Ram’s Tradesman series of trucks from half-ton to Class 5, establishing a network of 950 commercially focused dealers, expanding commercial and vocational marketing efforts and leveraging Fiat Professional to bring proven commercial vans to North America.

The 2016 Chassis Cab best-in-class capability ratings:

Best-in-class Gross Combined Weight Rating (GCWR)
Best-in-class towing (4500 and 5500)
Best-in-class front Gross Axle Weight Rating (GAWR) on 4500 and 5500
Best-in-class rear frame steel strength of 50,000 psi
Best-in-class crew cab “curb to curb” turning diameter for 3500,4500 and 5500
Features include a number of industry exclusives:
Vehicle system interface module (VSIM) is capable of communicating between aftermarket modules and various Chassis Cab control modules
Electronic stability control (ESC) on all models
Best-in-class, dual fuel tank capacity of 74 gallons (52-gallon tank plus 22-gallon tank)
Best-in-class 15,000-mile oil change intervals on Cummins diesel
Largest-in-class brakes
Best-in-class dual alternator systems up to 440 amps
Exclusive fit-to-use backup camera and front/rear parking sensors
Best-in-class powertrain warranty – five years/100,000 miles on diesel engines and unsurpassed 5 year/60,000 miles on gas enignes


Ram Chassis Cab engineers design trucks for upfits and develop unique features to ease installation of multiple systems and bodies without interference or difficult relocation of components, including:

Industry standard frame lengths of 60, 84, 108 and 120 inches
No components or lines above the rear frame rails
Through-the-frame plumbing and electrical
Diesel exhaust fluid tank (DEF) refill port is conveniently located at the rear of the cab on the driver’s side to ensure easy access at fuel stations


Engineering

The Ram 3500 Chassis Cab model features a three-link front suspension, which provides greater
load-carrying capability and best-in-class towing.

Ram 4500 and 5500 Chassis Cabs are rated for up to 7,000 pounds of front Gross Axle Weight Rating (GAWR) on 6.4-liter gas engine-equipped models and up to 7,250 pounds GAWR on 6.7-liter Cummins Turbo Diesel models.

Gross Vehicle Weight Ratings (GVWR) for Ram 3500 models equipped with single rear wheels range from 10,500 to 12,000 pounds. A 10,000-lb. GVWR model also is available.

To handle the best-in-class towing and unsurpassed GVWR capability of the Ram Chassis Cab, robust front suspension springs handle heavier loads while maintaining front ride height and improving overall roll stiffness. Greater roll stiffness, also known as body roll, is an important characteristic in taller vehicles, especially trucks with heavy payloads. An advanced five-link front suspension on Class 4 and 5 Ram 4500 and 5500 Chassis Cab trucks ensures excellent ride and handling for a higher GVWR and for use with heavy front loads, including snow plows. The Hotchkiss rear leaf spring suspension not only provides a minimum of zero degrees rake angle at max load, it also maintains objectives for ride and handling.

With upfits in mind, Ram Chassis Cab trucks feature frames built with high-strength 50,000 psi steel, including eight separate cross-member construction. Designing the frames for upfits creates a competitive advantage, improves durability and reduces warranty costs from unapproved modifications. Ram Chassis Cab trucks have no components or lines above the rear frame rails. For example, the diesel exhaust fluid tank (DEF) is located under the cab and out of the upfit zones. The feature reduces the need for modification and relocation that is sometimes required in competitive trucks. One piece, C-channel rear frame rails, and through-the-frame plumbing and electrical provide a flat plane for ease of mounting application bodies and accessories.

Steering

The drag link is positioned over the track bar to reduce roll oversteer and to improve tracking at highway speeds. Also, the drag link is attached directly to the knuckle, offering improved efficiency for driver input. The caster and track are engineered for more wheel-aligning torque, which improves “return-to-center” at the steering wheel. A ball joint alignment feature and sealing method improves alignment and service for lower total cost of ownership. This design results in enhanced and precise on-center feel, despite the vehicle’s impressive towing and payload capacities.

Body

The Ram Chassis Cab comes equipped with specially tuned engine, transmission and body mounts for class-leading noise, vibration and harshness (NVH) characteristics.

Ram 3500, 4500 and 5500 Chassis Cab commercial trucks are available with an engineering-approved, upfitter-friendly solution for customers who require back panel removal on regular cab trucks. Because the instructions were created and approved by Ram Commercial truck engineers, the cutaway design retains the structural integrity of the truck.

Electrical

As the Ram Chassis Cab continues to offer more featured content, it created the need for a technology that allows more information to be electronically communicated within the truck. The Powernet system allows both high- and low-speed data networks to be equipped with as many as 40 individual modules, all designed to improve vehicle performance and enhance the comfort and safety of driver and passengers.

A majority of the commercial truck customers need to tie into the electrical system, and certain fleet customers require access to vehicle information. A best-in-class VSIM is capable of communicating between aftermarket modules and various Chassis Cab control modules. The class-exclusive module acts as a secure gateway to the vehicle’s electrical systems and data bus architecture to enable safe, secure plug-and-play connectivity for up-fitter use.

An optional dual 220-amp alternator system (440 amps total) on the diesel-equipped Ram Chassis Cab provides best-in-class electrical capability for the higher electrical loads required in select upfits, such as emergency lighting and electric clutch pumps. The 6.4-liter gas engine powertrain gets a dual-alternator option, pairing a 220-amp unit with a 160 amp, for a total of 380 amps.

A segment-exclusive selective tire-pressure display is available for both single- and dual-rear-wheel 3500 models.

Total cost of ownership and unsurpassed powertrain warranty - five years/100,000 miles

Operating costs are of great consideration for owners who use their trucks for work. The 2016 Ram Chassis Cab claims class-leading features in:

Extended maintenance cycle (15,000-mile oil change, fuel filter life)
Brake life with advanced engine exhaust brake
Upfit integration


The 2016 Ram Chassis Cab is backed with a best-in-class, five-year/100,000-mile Powertrain Limited Warranty. The powertrain limited warranty covers the cost of all parts and labor needed to repair a covered powertrain component – engine, transmission and drive system. Coverage also includes free towing to the nearest Ram Truck dealer, if necessary. The warranty is transferable allowing customers who sell their truck during the warranty period to pass the coverage on to the new owner. The standard three-year/36,000-mile Basic Limited Warranty provides bumper-to-bumper coverage for the Ram Chassis Cab, from the body to the electrical system.

Powertrain
The Ram 3500, 4500 and 5500 Chassis Cabs come standard with the 6.4-liter HEMIģ V-8 gasoline engine. The Chassis Cab version of the 6.4-liter HEMI is similar by design, but is engineered for a different duty cycle, when compared to the version offered in the Ram 2500 and 3500. The larger-displacement powerplant provides a worthy gas-powered option to the segment’s overall standard-bearer – the 6.7-liter Cummins Turbo Diesel.

Compelling numbers tell the story of the 16-valve engine: rated at 410 horsepower at 5,600 rpm (370 horsepower at 4,600 rpm for Aisin in 4500/5500) and a peak torque rating of 429 lb.-ft. at 4,000 rpm.

The 6.4-liter HEMI V-8 offers a number of features important to the hard, working, heavy- and medium-duty segments, including the dual-alternator option and a programmable idle shut-down timer. Additionally, the engine features the Fuel Saver cylinder deactivation operation under normal driving conditions (66RFE transmission) and during PTO mode (Aisin transmissions) to improve efficiency.

The 6.4-liter HEMI is available with the 66RFE six-speed automatic transmission or the AS66RC six-speed automatic transmission with segment exclusive, gasoline engine left- or right-side PTO capability.

Unlike the competition, Ram offers two engine variants based on the 6.7-liter Cummins for diesel supremacy in the segment.

The first version features 320 horsepower at 2,800 rpm and 650 lb.-ft. of torque at 1,400 rpm. The engine is paired with Ram’s segment-exclusive six-speed manual transmission, which features a wear-compensating clutch for consistent performance and a dual-trunion shift tower to accommodate a compact shift pattern.

A second high-output diesel delivers best-in-class 325 horsepower at 2,400 rpm and generates best-in-class torque of 750 lb.-ft. at 1,500 rpm. The engine is paired with an Aisin six-speed automatic transmission (AS69RC).

The Aisin AS69RC transmission features robust components and impressive shift performance, transmission efficiency and drivability when compared to the competition. The transmission is designed for high engine ratings and enables a left- and right-side PTO option, as well as allowing for a split shaft PTO configuration (diesel). Fire pumpers, dump beds, aerial buckets, cranes and onboard compressor/generators are typical PTO-based upfits.

Ram 3500 Chassis Cab trucks are equipped with a front-axle disconnect for greater fuel efficiency.

All Ram Chassis Cab diesels benefit from an advanced cooling system. A high-efficiency fan, oversized radiator, dual transmission coolers and charge air cooler provide impressive heat-rejection capacity to align with best-in-class GCWR. Lower operating temperatures deliver unsurpassed performance, durability and lower operating costs.

Best-in-class GCWRs also is facilitated by the industry-exclusive Ram Active Air intake system, activated by monitoring capabilities in the engine controller. When the exclusive intake system senses extreme heat, it draws cooler air from the front of the vehicle – a function that also engages at high altitudes for superior throttle response in low-oxygen environments. When conditions are wet from snow, ice or water fording, the system pulls air from an under-hood inlet, clear from snow packing and water ingestion.

A dual fuel tank option combines 52-gallon and 22-gallon tanks for 74 gallons of extended, integrated onboard fuel range for lower operating costs. Additionally, a mid-ship 22-gallon tank is an option for gasoline- and diesel-powered Chassis Cabs.

Emissions performance
The Cummins power plants utilize a large exhaust-gas recirculation cooler, which complements the selective catalytic reduction (SCR) and accommodates a best-in-class oil-change interval of 15,000 miles. Oil life is longer by reducing soot production and reducing fuel dilution of the oil.

When needed, the diesel exhaust fluid (DEF) is injected into the exhaust to reduce NOx (Nitrogen Oxides) emissions coming out of the tail pipe. Unlike the competition, the Ram Chassis Cab maintains full power when fluid is low. The state-of-the art DEF system applied on the Ram Chassis Cab features an electric heater in the DEF tank to ensure the fluid is available in a liquid state regardless of climate. The DEF refill port is conveniently located at the rear of the cab on the driver’s side of the vehicle, and clear of upfit zones, a configuration that ensures easy access at fuel stations when compared to the competition.

Combined with an improvement in fuel economy, due in part to the engines’ high-pressure common-rail fuel system, SCR provides a net reduction in Ram Chassis Cab operating costs.

The SCR-equipped Cummins engines also operate cleaner by lowering greenhouse-gas emissions and better managing soot production than Lean NOx Trap (LNT) technology.

DESIGN

Exterior
Ram Chassis Cab trucks are available in Tradesman, SLT and Laramie trim levels.

Three grille designs are available on 2016 Ram Chassis Cabs, and a premium headlamp features bi-functional halogen projectors and LEDs for park/turn and side markers. The LED light housings are functional hardware with appeal and durability over incandescent bulbs.

Ram 3500 Chassis Cab single rear wheel models get three 18-inch wheels: steel (Tradesman), chrome-clad steel (standard on SLT, optional on Tradesman) and polished aluminum (standard on Laramie, optional on Tradesman and SLT).

An exclusive, backup camera is available and delivered with factory wiring and multipurpose mount for easy installation by the upfitter. The camera provides a view of the rear with high definition and dynamic imaging in the available 5.0-inch and 8.4-inch radio display or 1.7 x 3-inch display in the rearview mirror. A new-for-2016 ParkSense backup sensor option is coupled with an exclusive front-park-assist system.

Exterior door and fender badges are located in a portrait style format providing usable real estate on the door for a commercial customer’s logos and graphics.

Ram Chassis Cab offers 12 different colors, including three new tones: Red Pearl, Luxury Brown and Pearl White. Other colors include: Black, Blue Streak Pearl, Bright Silver Metallic Bright White, Deep Cherry Red Crystal Pearl, Flame Red, Granite Crystal Metallic, Maximum Steel Metallic, Prairie Pearl, True Blue Pearl, Black Forest Green Pearl and Western Brown Pearl.

Ram Chassis Cab models are also available in an additional 18 specialty paint options, including: Midnight Blue, Case Construction Power Tan, Case IH Red, New Holland Construction Yellow, New Holland Agriculture Blue and Robin Egg Blue.

Interior
2016 also offers a new center console design on all trims and Bluetooth connectivity on entry-level radios. In four-door models, rear-seat occupants enjoy the same quality, fit and finish as the driver. With points of contact a priority, premium, durable materials are on all four doors.

The 2016 Ram Chassis Cab features the 8.4-inch Uconnect system. The center stack includes matching materials found throughout the interior. To complement the range of Chassis Cab models, the interior design team created individualized themes with different colors and materials.

Below the HVAC arrangement is a switch bank with easy-to-use controls for a number of features depending on vehicle models and options. The top row is for functional features and includes exhaust brake, tow/haul and electronic stability control (ESC). Five instrument panel mounted auxiliary switches are standard on all Chassis Cab models. The fifth switch becomes a PTO on/off switch when equipped. The bottom row comes standard as an auxiliary switch bank for all five spots with a PTO option when equipped. Contiguous to the switch bank is a prominently placed adjustable integrated trailer brake control allowing the driver to add or reduce trailer brake function on the fly. The console center stack includes one 115-volt and two 12-volt outlets on either side with an optional powered USB port on the driver’s side.

The 3.5-inch vehicle information center screen is a standard feature. The thin-film transistor (TFT), 7-inch multiview display is available on SLT and Laramie models. The 7-inch screen features fully customizable function and configurability giving the owner a variety of systems to monitor from transmission temperature to navigation.

MANUFACTURING

2016 Ram 3500, 4500 and 5500 Chassis Cab are built at the Saltillo Truck Assembly Plant in Coahuila, Mexico.

Rick

Nitro Year: 2007 (1 of 91,815 sold in 07)
Nitro Model: R/T 4X4 Stone White
CAT-BACK Exhaust, CAI, Projector Head Lamps
Fully-Equipped w/all factory options
rickaren is online now
post #3 of 4 (permalink) Old 12-01-2015, 08:53 AM Thread Starter
Super Moderator

rickaren's Avatar

Join Date: Nov 2006
Location: Indiana
Posts: 22,860
Garage
2016 Ram 3500 HD Review

2016 Ram 3500 HD Review
All Hail the Torque King




Nov 24, 2015

Another shot has been fired in the best-in-class war going on in the world of heavy duty (HD) pickup trucks and this time itís Ram holding the smoking gun.


FAST FACTS

Engine: 6.7-liter diesel with 385 hp and 900 lb-ft of torque.

Transmission: Six-speed automatic

Pricing: $32,090 base.

For 2016, the American automakerís big rigs are getting a new high output version of the 6.7-liter Cummins diesel engine that puts out 900 pound-feet of torque, a new height never before reached by HD trucks.

With this configuration, Ram claims a best-in-class tow rating of 31,210 pounds and a best-in-class payload rating of 7,390 pounds.




On paper, Ramís HD numbers are mighty impressive, but in the real world, are those best-in-class claims justified?

We had the chance to haul a 31,000 pound trailer packed with steel on a gooseneck trailer with the new truck to really see how the 900 lb-ft transfers to the ground. Ram also put us behind the wheel of the 3500 Laramie Limited to sample the height of its luxury lineup, all at the companyís test facility located in Chelsea, Michigan. Before we talk about how these trucks handled though, letís discuss what it takes for this truck to get such impressive numbers.

Decisions, decisions


Three versions of the 6.7-liter diesel are available. The ďweakestĒ setup is paired to a segment-exclusive six-speed manual transmission, putting out 350 horsepower at 2800 rpm and 660 lb-ft of torque at 1500 rpm.

With the 68RFE six-speed automatic transmission, the Cummins diesel manages to make 370 hp at 2800 rpm and 800 lb-ft of torque at 1600 rpm.

Finally, the 900 lb-ft version uses an Aisin six-speed automatic transmission, which allows the truck to churn out 385 hp. For this maximum power, it must also be a regular cab with two-wheel drive and a 4.10:1 rear axle ratio.

Not coincidentally, this is exactly the configuration that Ram let us drive around FCAís Chelsea proving grounds, with a massive load of steel hitched to the gooseneck.

900?

Not surprisingly, the Cummins strains hard to get the massive, limit-pushing load on the move. While the 900 lb-ft claim jumps off the page when you first read it, my internal seat-of-the-pants dyno didnít really feel the extra torque compared to last yearís Ram 3500, a truck I also had the chance to tow with quite a bit. Off all the Heavy Duty pickups, Ramís 3500 has always felt like it is overrated when it comes to power and that hasnít changed.

The real-world acceleration of the truck doesnít quite live up to what the numbers would suggest, taking a long run to get up to highway speeds. Expecting a load like this to jump to speed is ridiculous with just about any engine, but this is not something I would fancy towing on public streets for any length of time.

Accelerating the weight may not be this packageís best feature, but controlling and stopping the load is handled well. The truck offers a heavy-set steering rack with a planted feeling that mixes well with heavy hauling. Cruising through corners and over uneven pavement didnít upset this rig, staying well in control at all times.

Braking also proves to be a strong suit of the Ram 3500. A three-stage exhaust brake is available and it makes a big difference. The first setting aligns the exhaust brake with the truckís brakes, while the second setting activates that exhaust brake the second you lift off the gas pedal. Even with this big load, you can feel the back pressure provided by the engine helping to scrub speed and keep everything safe.

The deep pronounced grumble of the exhaust brake sounds fantastic as well, an added bonus on top of its capability.

Outside of actually handling at the limit quite well, this Ram offers some features which will help anyone who plans to tow trailers. Most notably is a camera mounted above the bed beside the high-mounted stop light, which serves two main purposes. First, helps you hookup a gooseneck or fifth-wheel trailer as you can monitor the hitch itself and line it up. It also acts as a cargo monitor, allowing you to check on either your hitch setup or on whatever you have in the bed without having to strain your neck.

A prep package for fifth-wheel and gooseneck hitches is available with this truck as well, making life easier for customers looking to utilize the truckís full pulling power with a bed-mounted hitch.

Heavy Duty Luxury

To get the massive tow rating, the Ram must be dressed in base tradesman trim, which means the interior include cloth seats, a small four-inch display screen and no niceties found in most modern trucks, although it is still fairly comfortable and there are plenty of smart features, like a rather large storage bin on the floor behind the seats. Our day spent at Chelsea wasnít just about this base heavy hauler though, as we also had the chance to sample Ramís new luxury Heavy Duty pickup, the 3500 Limited.



This luxury package is subtle in its execution, and comes across with the simple, well-though-out feeling of a German luxury car. A revised front grille, which is plastered in chrome, announces the Limited model, while the interior gets leather seats, real-wood inserts, contrast stitching and silver pin striping. Though some view it as a cheap truck option, the column-mounted shifter feels more suited to Ramís large trucks than the knob-operated transmission found in the 1500.

With the current industry-wide push into high price luxury pickups, the 3500 Limited will fit right in. This is one interior I wouldnít mind spending eight hours in.

Pricing

Base pricing for a 3500 Limited model begins around $57,000, though a fully loaded model can easily crest the $70,000 mark. To get the version of the truck with the maximum tow rating, youíre looking at spending at least $46,500, not an unreasonable price for the amount of capability on offer. But getting those high tow numbers better be worth it to you, because they donít come cheap. Getting the 6.7-liter Cummins diesel will cost you $8,995, while adding the Aisin six-speed that makes all that torque possible will cost you $2,595, for a total of $11,590 extra.



Iím always quick to recommend the diesel to anyone who plans on doing any serious towing, as the dynamics of the engine will help keep you and your load safe and secure. This hasnít changed. But bumping up to the six-speed Aisin is a move thatís hard to see the value in.

Unless you plan on loading your truck right to the limit, which is something we wouldnít recommend doing on a regular basis, the 22,000-lb tow rating of the lesser six-speed automatic transmission will probably be enough for just about every customer. Unless you truly need that added capability, itís just not worth the money.

The Verdict: 2016 Ram 3500 HD Review

Though 900 lb-ft of torque looks mighty impressive on paper, it didnít have us blown away in practice. Still, we canít deny that right at the limit, the 2016 Ram 3500 can still tow with admirable performance, controlling massive amounts of trailer weight safely.

LOVE IT

Limited luxury interior
Braking
Bed camera


LEAVE IT

H/O transmission cost

AutoGuide.com

Rick

Nitro Year: 2007 (1 of 91,815 sold in 07)
Nitro Model: R/T 4X4 Stone White
CAT-BACK Exhaust, CAI, Projector Head Lamps
Fully-Equipped w/all factory options
rickaren is online now

post #4 of 4 (permalink) Old 03-04-2016, 01:29 PM Thread Starter
Super Moderator

rickaren's Avatar

Join Date: Nov 2006
Location: Indiana
Posts: 22,860
Garage
Ram Chassis Cabs Offer Wide Range of Power Takeoff Options

Ram Chassis Cabs Offer Wide Range of Power Takeoff Options

March 3, 2016




For 2016, the Ram Commercial lineup will offer each of its heavy-duty pickup truck chassis cabs ó the Ram 3500, 4500 and 5500 ó with a power-takeoff (known as PTO units) option in several different configurations, more than any truckmaker in the segment.

A PTO unit is a mechanical setup that typically runs off the transmission, using engine power to operate equipment while the truck is stationary, such as an external compressor, generator, water pump, post-hole digger, landscaping cutters or just about anything else that requires energy.


Quote:
It's not unusual for heavy-duty pickups to offer a PTO option, especially when special-purpose customers or industries are involved (such as oil, forestry and mining), but what is unusual is the array of choices available to chassis-cab buyers. Ram's PTO feature can be ordered on any of its three chassis-cab models with either the 6.4-liter gas engine or the 6.7-liter inline six-cylinder turbo-diesel and with 4x2 or 4x4 drivelines. Buyers also can choose whether to position the PTO on the right or left side of the vehicle ó depending on the driveline and/or powertrain choices.

All models of the Ford Super Duty chassis cab (F-450, F-550, F-650 and F-750) can be ordered with a PTO option; the first two offered with a stationary model for gas (V-10) or diesel (V-8), the medium-duty trucks offer three different types of PTO, called "live drive," but must be ordered with the Power Stroke diesel and can operate either stationary or while driving ($280). GM offers a chassis-cab model for its GMC or Chevrolet one-ton trucks (GM offers nothing larger) and only offers a PTO option for the six-speed Allison transmission (standard with the Duramax turbo-diesel).



The Ram PTO reportedly provides a best-in-class 60 horsepower and 250 pounds-feet of torque, at a cost of $295. Ram Commercial has a network of 950 dedicated dealerships across the U.S. and Canada.
SOURCE

Rick

Nitro Year: 2007 (1 of 91,815 sold in 07)
Nitro Model: R/T 4X4 Stone White
CAT-BACK Exhaust, CAI, Projector Head Lamps
Fully-Equipped w/all factory options
rickaren is online now
Sponsored Links
Advertisement

Reply

  Dodge Nitro Forum > Dodge Nitro News & Polls > Chrysler/Dodge/Jeep News

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Dodge Nitro Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in











Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Similar Threads
Thread Thread Starter Forum Replies Last Post
2016 RAM 2500/3500 Heavy Duty rickaren Chrysler/Dodge/Jeep News 22 08-23-2016 09:17 AM
Recall Alert: 2016 Ram 2500, 3500, 4500/5500 rickaren Chrysler/Dodge/Jeep News 0 10-12-2015 06:09 AM
Recall Alert: 2015 Ram 4500 and 5500 Chassis Cabs rickaren Chrysler/Dodge/Jeep News 1 08-24-2015 08:54 AM
Recall Alert: 2014-2015 Ram 4500 and 5500 cab chassis rickaren Chrysler/Dodge/Jeep News 1 06-22-2015 05:53 AM
Recall Alert: 2012 RAM 3500-5500 rickaren Chrysler/Dodge/Jeep News 0 08-07-2013 02:25 PM

Posting Rules
You may not post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
